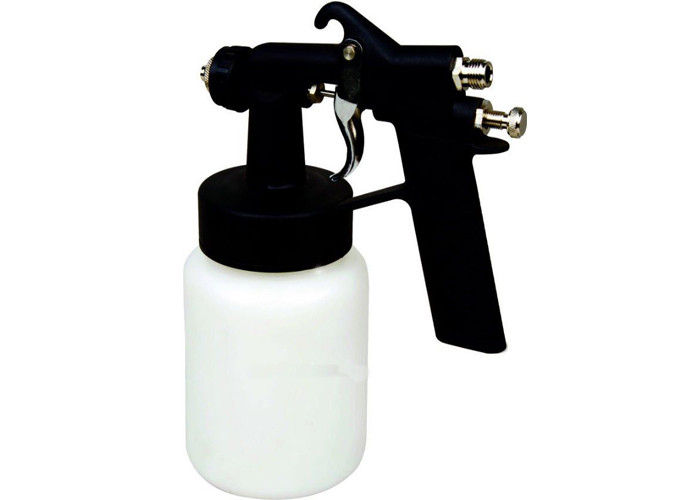

SL-112P

Feature:

Low Pressure Spray Gun
Plastic Gun body to easy hand
Standard Dia. of Painting Nozzle: Φ 1.3mm
Max Pressure: 45PSI
Max Pattern Width of Round Shaped: 150mm
Capacity of Paint Container: 700ml
Type of Feed: Suction feed

1.3mm diameter low-pressure all-plastic gun
Nozzle made of copper.
Fan-shaped spray pattern.
Air intakes for the 1/4-19 inch thread.
Under white plastic pot capacity of 700 ml.
The gun overall weight of 500 g

How to Select a Spray Gun Nozzle Tip Size

What Size Spray Tip Should I Use with my Spray Gun?

There are many different things to consider when selecting the appropriate size spray tip for each job. The amount of information on the subject can be overwhelming, so we at the Bottom Paint Store have done our best to make this step easier for you.

There are three main factors to consider when determining the size tip that will produce the best results.

• First, examine the coating that will be sprayed. Put simply, heavier coatings will require a larger orifice size than lighter ones. For example, primers are usually thicker than the accompanying paint so you should use a 1.7 or 1.8 mm tip to prime most surfaces. Most painters will stay in the range of 1.2 to 2.0 mm unless the paint being applied is specialized. (See chart below.)
• The next thing to consider is your project surface area. This determines the appropriate fan width that your sprayer will produce, that is, the shape in which the product will leave the gun nozzle. Airless spray guns have more control over the fan width than conventional spray guns because the coating is forced through the tip without being atomized by air. This causes the tip to have a large impact on the fan width and shape. Most boat projects consist of large surfaces and so a wide fan will increase the spray coverage and also provide the ability to spray close to the surface without too much build up. Smaller surfaces will require a small fan width to reduce overspray. This also makes it possible to spray further away from the surface without too much falloff because the fan is more focused.
• Lastly, consider the spray gun that is being used. Make sure that the spray tip you plan on using will be supported by the gun. Most spray gun manufacturers will provide this information in their product overview.

• Common Spray Tip Sizes and Their Uses
  Tip size (mm)	Commonly Used for
  0.8	Parting Films – PVA – very fine mist
  1.2	Clear Coats – super fine finishes
  1.4	All Around Tip – clears, base coat, single stage paints
  1.6	General Purpose – light to heavy viscosity materials
  1.8	Primers – will apply primer quickly
  2.2 -2.5	Gel Coats and Resins – for thick resins and not paints

Ningo Seelion Co.,ltd is an OEM manufacturer and a trader with more than 10 years trading experiences which located in Ningbo ,Zhejiang,China.

Seelion has developed a comprehensive range of products to meet clients' various requirements on air painting gun, washing gun, blowing gun, inflating gun, greasing gun, gauge tool, air tools kit etc.

At present, we have lots of excellent manufactures , which factories possess hundres of numerical lathes, dozens of CNC auto drilling machines, integrated assemble lines and auto-packing lines. Together with our excellent facory partners, we are now capable of producing about 5,000 guns daily to meet your requirements.

Our products are exported to many countries in the world such as North America, European Union, South-East, Asia, Africa and the Middle East.
Based on the high-efficiency management, advanced-tech equipments and professional workers, we have thus built the confidence of meeting the fierce competition ahead of us, with vision to be one of the leading partners worldwide through our continuous creativity and cooperation in providing high quality products and service persistently.

In addition, the approval of UL, GS, CE and ISO9001 quality management system further ensure the stability and consistence of our products.We warmly welcome customers from all over the world to have
visits or business cooperation with us!
